Healing from vulvodynia

Pamela Jertberg and Erik Peper

Adapted from: Jertberg, P. & Peper, E. (2023). The healing of vulvodynia from the client’s perspective. Biofeedback, 51 (1), 18–21.  https://doi.org/10.5298/1081-5937-51.01.02

This introspective report describes how a young woman who experienced a year-long struggle with vulvodynia, or vulvar vestibulitis, regained her health through biofeedback training and continues to be symptom-free 7 years after the intervention. This perspective may offer insight into factors that promote health and healing and provide an approach to reduce symptoms and promote health. The methodology of this case was described previously by Peper et al. (2015).

The Client’s Experience

I have been a healthy young woman my whole life. Growing up in a loving, dedicated family, I always ate home-cooked meals, went to bed at a reasonable time, and got plenty of exercise by playing with my family members and friends. I never once thought that at age 23 I might be at risk of undergoing vulvar surgery. There are many factors that contributed to the genesis of my vulvar pain, and many other factors that worsened this pain. Traditional medicine did not help me, and I did not find relief until I met my biofeedback practitioner, who taught me biofeedback. Through the many strategies I learned, such as visualization, diaphragmatic breathing techniques, diet tips, and skills to reframe my thoughts, I finally began to feel relief and hope. Practicing all these elements every day helped me overcome my physical pain and enjoy a normal life once again. Today, I do not have any vulvar discomfort. I am so grateful to my biofeedback practitioner for the many skills he taught me. I can enjoy my daily activities once again without experiencing pain. I have been given a second chance at loving life, and now I have learned the techniques that will help me sustain a more balanced path for the rest of my life. Seven years later, I am healthy and have no symptoms.

Triggers for Illness

Not Having a Positive Relationship with the Doctor

The first factor that aggravated my pain was having a doctor with whom I did not have a good relationship. Although the vulvar specialist I was referred to had treated hundreds of women with vulvar vestibulitis, his methods were very traditional: medicine, low oxalate diet, ointments, and surgery. Whenever I left his office, I would cry and feel like surgery was the only option. Vaginal surgery at 23 was one of the scariest and most unexpected thoughts my brain had ever considered. The doctor never thought of the impact that his words and treatment would have on my mental state.

Depression

Being depressed also triggered more pain. Whenever I would have feelings of hopelessness and create irrational beliefs in my mind (“I will never get better,” “I will never have sex again,” “I am not a woman anymore”), my physical pain would increase. Having depression only triggered more depression and pain, and this became a vicious cycle. The depression deeply affected my relationships with my boyfriend, friends, and family and my performance in my college classes.

Being Sedentary

Being sedentary and not exercising also increased my pain. At first, I believed that the mere act of sitting down hurt me due to the direct pressure on the area, but after a few months I came to realize that it was inactivity itself that triggered pain. Whenever I would sit for too long writing a paper or I would stay home all day because of my depression, my pain would increase, perhaps because I was inhibiting circulation. Still, when I am inactive most of the day, I feel lethargic and bloated. When I exercise, the pain goes away 100%. Exercise is almost magical.

Stress

Stress is the worst trigger for pain. Throughout my life, I always strived to be perfect in every way, meaning I was stressed about the way I looked, performed in school, drove, etc. Through the sessions with my biofeedback practitioner, I learned that my body was in a state of perpetual stress and tightness, which induced pain in certain areas. My body’s way of releasing such tension was to send pain signals to my vulvar area, perhaps because of a yeast infection a couple of months back. Still, if I become very stressed, I will feel pain or tightness in certain parts of my body, but now I have strategies for performing proper stress-relieving techniques.

Processed Foods

Junk food affects me instantly. When I eat processed foods for a week straight, I feel groggy, bloated, lethargic, and in pain. Processed sugar, white flour, and salt are a few of the foods that make the pain increase. I used to love sugar, so I would enjoy the occasional milkshake and cheeseburger and feel mostly okay. However, in times of stress it became crucial for me to learn to refrain from any junk food, because it would worsen my vulvar pain and increase my overall stress levels.

Menstruation

Menstruation is unavoidable, and unfortunately it would always worsen my vulvar pain. Right about the time of my period, my sensitivity and pain would massively increase. Sometimes as my pain would increase incredibly, I would question myself: “What am I doing wrong?” Then, I would remember: “Oh yes, I am getting my period in a few days.” The whole area became very sensitive and would get irritated easily. It became imperative to listen to my body and nurture myself especially around that time of the month.

Triggers for Healing

A Good Doctor

Just as I learned which factors triggered the pain, I also learned how to reduce it. The most important factor that helped me find true relief was meeting a good health professional (which could be a healer, nurse, or professor). The first time I met my biofeedback practitioner and told him about my issues, he really listened, gave me positive feedback, and even made jokes with me. To this day we still have a friendship, which has really aided me in getting better. In contrast to the vulvar specialist, I would leave the biofeedback practitioner’s office feeling powerful, able to defeat vulvodynia, and truly happy. Just having this support from a professional (or a friend, boyfriend, or relative) can make all the difference in the world. I don’t know where I would be right now if I hadn’t worked with him.

Positive Thoughts and Beliefs

Along with having a good support group, having positive thoughts and believing in a positive result helped me greatly. When I actually set my mind to feel “happy” and to believe that I was getting better, I began to really heal. After months of being depressed and feeling incomplete, when I began to practice mantras such as “I am healing,” “I am healthy,” and “I am happy,” my pain began to go away, and I was able to reclaim my life.

Journaling

One of the ways in which “happiness” became easier to achieve was to journal every day. I would write everything: from my secrets to what I ate, my pain levels, my goals for the day, and my symptoms. Writing down everything and knowing that no one would ever read it but me gave me relief, and my journal became my confidante. I still journal every day, and if I forget to write, the next day I will write twice as much. Now that writing has become a habit and a hobby, it is hard to imagine my life without that level of introspection.

Meditation

Although I would do yoga often, I would never sit and meditate. I began to use Dr. Peper’s guided meditations and Dr. Kabat-Zinn’s CD (Kabat-Zinn, 2006Peper et al., 2002). The combination of these meditation techniques, whether on different days or on the same day, helped me focus on my breathing and relax my muscles and mind. Today, I meditate at least 20 min each day, and I feel that it helps me see life through a more willing and patient perspective. In addition, through meditation and deep breathing I have learned to control my pain levels, concentration, and awareness.

Imagery and Visualization

Imagery is a powerful tool that allowed me to heal faster. My biofeedback practitioner instructed me to visualize how I wanted to feel and look. In addition, he suggested that I draw and color how I was feeling at any given moment, my imagined healing process, and how I would look and feel after the healing process had traveled throughout my body (Peper et al., 2022). It is still amazing to me how much imagery helped me. Even visualizing here and there throughout the day helped. Now I envision how I want to feel as a healthy woman, I take a deep breath, and as a I breathe out I let my imagined healing process go through my body into all my tight areas along with the exhalation.

Biofeedback

Biofeedback is the single strategy that helped me the most. During my first session with my biofeedback practitioner, he pointed out that my muscles were always contracted and stressed and that I was not breathing diaphragmatically. As I learned how to take deep belly breaths, I began to feel the tight areas in my body loosen up. I started to practice controlled breathing 20 min every day. Through biofeedback, my body and muscles became more relaxed, promoting circulation and ultimately reducing the vulvar pain.

Regular Exercise and Yoga

Exercising daily decreased my pain and improved the quality of my life greatly. When I first started experiencing significant vulvar pain, I stopped exercising because I felt that movement would aggravate the pain. To my surprise, the opposite was true. Being sedentary increased the feelings of discomfort, whereas exercising released the tension. The exercise I found most helpful was yoga because it is meditation in movement. I became so focused on my breathing and the poses that my brain did not have time to think about anything else. After attending every yoga class, I felt like I could take on anything. Swimming, Pilates, and gentle cardiovascular exercises have also helped me greatly in reducing stress and feeling great.

Sex

Although sex was impossible for almost a year due to the pain, it became possible and even enjoyable after implementing other relaxation strategies. When I first reintroduced sex back into my life, my partner at the time and I would go gently and stop if it hurt my vulvar area at all. Today, sex again is joyful. Being able to engage in intercourse has boosted my self-esteem and helped me feel sexy again, which empowers me to keep practicing the relaxation techniques.

Listening to the Mind-Body Connection

The mind-body connection is present in all of us, but I am fortunate to have a very strong connection. My thoughts influence my body almost instantly, which is why when I would get depressed my pain would increase, and when I would see my biofeedback practitioner or believe in a good outcome, my pain would decrease. Being aware of this connection is crucial because it can help me or hurt me greatly. After a few months of practicing the relaxation strategies, I saw a different gynecologist and one dermatologist. Both professionals said that there was nothing wrong with my vulvar area—that maybe I just felt some irritation due to the medicines I had previously taken and my current stress. They said that there was no way I needed surgery. When I heard these opinions, I began to feel instantly better—thus proving that my thoughts (and even others’ thoughts) affect my body in significant ways.

Although today I am 100% better, I still experience pain and tightness in my body when I experience the “illness factors” I mentioned above. I still have to remember that feeling healthy and good is a process, not a result, and that even if I feel better one day that does not mean I can stop all my new healthy habits. To completely cure vulvodynia, I needed to change my life habits, perspective, and attitude toward the illness and life. I needed to make significant changes, and now my biggest challenge is to stick to those changes. Biofeedback, imagery, meditation, good food, and exercise are not just treatments that I begin and end on a certain day, but rather they have become essential components of my life forever.

My life with vulvodynia was ultimately a journey of introspection, decision making, and life-changing habits. I struggled with vulvar pain for over a year, and during that year I experienced severe symptoms, depression, and the loss of several friendships and relationships. I felt old, hopeless, useless, and powerless. When I began to incorporate biofeedback, relaxation techniques, journaling, visualization, a proper diet, and regular exercise, life took a turn for the better. Not only did my vulvar pain begin to decrease, but the quality of my overall life improved and I regained the self-confidence I had lost. I became happy, hopeful, and proactive. Even though I practiced the relaxation strategies every day, the pain did not go away in a day or even a month. It took me several months of diligent practice to truly heal my vulvar pain. Even today, such practices have carried on to all areas of my life, and now there is not a day when I do not meditate, even for 5 min.

As paradoxical as it may seem, vulvodynia was a blessing in disguise. I believe that vulvodynia was my body’s way of signaling to me that many areas of my life were in perpetual stress: my pelvic floor, my thoracic breathing, my romantic relationship at the time, etc. When I learned to let go and truly embrace my life, I began to feel relief. I became less irritable and more patient and understanding, with both my body and the outside world. The best advice I can give a woman with vulvar symptoms or any person with otherwise inexplicable chronic pain is to apply the strategies that work for you and stick to them every day—even on the days when you want to go astray. When I started to focus on what my body needed to be nurtured and to live my life and do the things I truly wanted to do, I became free. Today, I live in a way that allows me to find peace, serenity, pride, and fun. I live exactly the way I want to, and I find the time to follow my passions. Vulvodynia, or any kind of chronic pain, does not define who we are. We define who we are.

Conclusion

This introspective account of the client’s personal experience with biofeedback suggests that healing is multidimensional. We suggest that practitioners use a holistic approach, which can provide hope and relief to clients who suffer from vulvodynia or other disorders that are often misunderstood and underreported.

Useful blogs

References

Kabat-Zinn, J. (2006). Coming to our senses: Healing ourselves and the world through mindfulness. Hachette Books

Peper, E., Cosby, J. & Almendras, M. (2022). Healing chronic back pain. NeuroRegulation, 9(3), 164–172.  https://doi.org/10.15540/nr.9.3.164

Peper, E., Gibney, K.H, & Holt, C.F. (2002. Make health happen: Training yourself to create wellness. Kendall/Hunt.

Peper, E. Martinex, Aranda, P. & Moss, D. (2015). Vulvodynia treated successfully with breathing biofeedback and integrated stress reduction: A case report. Biofeedback, 43(2), 103–109. https://doi.org/10.5298/1081-5937-43.2.04


Relieve and prevent neck stiffness and pain

Is your neck stiff, uncomfortable and painful?

When driving is it more difficult to turn your head?

Neck and shoulder pain affect more than 30% of people (Fejer et al, 2006; Cohen, 2015).  This blog explores some strategies to reduce or prevent neck stiffness and discomfort and suggests practices to reduce discomfort and increase flexibility if you already are uncomfortable.

Shifts in posture may optimize neck flexibility

In our modern world, we frequently engage in a forward head position while looking at electronic devices or typing on computers. Prolonged smart phone usage has the potential to negatively impact posture and breathing functions (Jung et al., 2016) since we tilt our head down to look at the screen. Holding the head in a forward position, as displayed in Figure 1, can result in muscle tension in the spine, neck, and shoulders.

head forward alignedFig 1. Forward head and neck posture in comparison to a neutral spine. Source: https://losethebackpain.com/conditions/forward-head-posture/

Whenever you bring your head forward to look at the screen or tilt it down to look at your cellphone, your neck and shoulder muscles tighten and your breathing pattern become more shallowly.  The more the head is forward, the more difficulty is it to rotate your  head as is describe in the blog, Head position, it matters! (Harvey et al, 2018). Over time, the head forward position may lead to symptoms such as headaches and backpain. On the other hand, when we shift to an aligned upright position throughout the day, we create an opportunity to relieve this tension as shown in Figure 2.

EMG head forward uprightFigure 2. EMG and respiration recording from a subject sitting with a forward head position and a neutral, aligned head position.  The neck and shoulder muscle tension was recorded from the right trapezius and left scalene muscles (Mason et all, unpublished).    .

The muscle tension recorded from scalene and trapezius muscles (neck and shoulder) in Figure 2 shows that as the head goes forward or tilts down, the muscle tension significantly increases. In most cases participants are totally unware that their neck tightens. It is only after looking at the screen or focus our eyes until the whole day that we notice discomfort in the late afternoon.

Experience this covert muscle tension pattern in the following video, Sensing neck muscle tension-The eye, head, and neck connection.

Interrupt constant muscle tension

One possible reason why we develop the stiffness and discomfort is that we hold the muscles contracted for long time in static positions. If the muscle can relax frequently, it would significantly reduce the probability of developing discomfort. Experience this concept of interrupting tension practice by practicing the following:

  • Sit on a chair and lift your right foot up one inch up from the floor. Keep holding it up? For some people, as soon as five seconds, they will experience tightening and the onset of discomfort and pain in the upper thigh and hip.

How long could you hold your foot slight up from the floor?  Obviously, it depends on your motivation, but most people after one minute want to put the foot down as the discomfort become more intense.  Put the foot down and relax.  Notice the change is sensation and for some it takes a while for the discomfort to fade out.

  • The reason for the discomfort is that the function of muscle is to move a joint and then relax. If tightening and relaxation occurs frequently, then there is no problem
  • Repeat the same practice except lift the foot, relax and drop it down and repeat and repeat. Many people can easily do this for hours when walking.

What to do to prevent neck and shoulder stiffness.

Interrupt static muscle neck tension by moving your head neck and shoulder frequently while looking at the screen or performing tasks.  Explore some of the following:

  • Look away from the screen, take a breath and as you exhale, wiggle your head light heartedly as if there is a pencil at reaching from the top of your head to the ceiling and you are drawing random patterns on the ceiling. Keep breathing make the lines in all directions.
  • Push the chair back from the desk, roll your right shoulder forward, up and back let it drop down and relax. Then roll you left shoulder forward up and back and drop down and relax. Again, be sure to keep breathing.
  • Stand up and skip in place with your hands reaching to the ceiling so that when your right foot goes up you reach upward with your left hand toward the ceiling while looking at your left hand. Then, as your left foot goes up your reach upward to the ceiling with your right hand and look at your right hand.  Smile as you are skipping in place.
  • Install a break reminder program on your computer such as Stretch Break to remind you to stretch and move.
  • Learn how to sit and stand aligned and how to use your body functionally such as with the Gokhale Method or the Alexander Technique (Gokhale, 2013; Peper et al, in press, Vineyard, 2007).
  • Learn awareness and control neck and shoulder muscle tension with muscle biofeedback. For practitioners certified in biofeedback BCB, see https://certify.bcia.org/4dcgi/resctr/search.html
  • Become aware of your collapsed and slouching wearing a posture feedback device such as UpRight Go on your upper back. This device provides vibratory feedback every time you slouch and reminds you to interrupt slouching and be upright and alighned.

Improve ergonomics

Arrange your computer screen and keyboard so that the screen is at eye level instead of having to reach forward or look down. Similarly, hold your cell phone so that it is at eye level as shown in Figure 3 and 4.

laptop ergonomicsFigure 3. Slouching forward to see the laptop screen can be avoided by using an external keyboard, mouse and desktop riser. Reproduced by permission from www.backshop.nl

Cellphone

Figure 4.  Avoid the collapsed while looking down at a cell phone by resting the arms on a backpack or purse and keeping the spine and head alighned. Photo of upright position reproduced with permission from Imogen Ragone, https://imogenragone.com/

Check vision

If you are squinting, bringing your nose to the screen, or if the letters are too small or blurry, have your eyes checked to see if you need computer glasses.  Generally do not use bifocals or progressive glasses as they force you to tilt your head up or down to see the material at a specific focal length. Other options included changing the display size on screen by making the text and symbols larger may allow you see the screen without bending forward.  Just as your muscle of your neck, your eyes need many vision breaks.  Look away from the screen out of the window at a distant tree or for a moment close your eyes and breathe.

What to do if you have stiffness and discomfort

My neck was stiff and it hurt the moment I tried to look to the sides.  I was totally surprised that I rapidly increased my flexibility and reduced the discomfort when I implemented the following two practices.

Begin by implementing the previous described preventative strategies. Most important is to interrupt static positions and do many small movement breaks. Get up and wiggle a lot. Look at the blog, Freeing the neck and shoulder, for additional practices.

Then, practice the following exercises numerous times during the day to release neck and shoulder tension and discomfort. While doing these practices exhale gently when you are stretching.  If the discomfort increases, stop and see your health professional.



REFERENCES

Cohen, S.P. (2015). Epidemiology, Diagnosis, and Treatment of Neck Pain. Mayo Clinic Proceedings, 90 (2), 284-299. https://doi.org/10.1016/j.mayocp.2014.09.008

Fejer, R., Kyvik, K.Ohm, & Hartvigesen, J. (2006). The prevalence of neck pain in the world population: a systematic critical review of the literature. European Spine Journal, 15(6), 834-848. https://doi.org/10.1007/s00586-004-0864-4

Gokhale, E. (2013). 8 Steps to a Pain-Free Back. Pendo Press.

Harvey, R., Peper, E., Booiman, A., Heredia Cedillo, A., & Villagomez, E. (2018). The effect of head and neck position on head rotation, cervical muscle tension and symptoms. Biofeedback. 46(3), 65–71.

Mason, L., Peper, E., Harvey, R., & Hernandez, W. (unpublished). Healing headaches. Does success sustain over time?

Peper, E., Krüger, B., Gokhale, E., & Harvey, R. (in press). Comparing Muscle Activity and Spine Shape in Various Sitting Styles. Biofeedback.

 Vineyar, M. (2007). How You Stand, How You Move, How You Live: Learning the Alexander Technique to Explore Your Mind-Body Connection and Achieve Self-Mastery. Boston: Da Capo Lifelong Books.


Adjust your world to fit you: Become the unreasonable person!*

 “Reasonable people adapt themselves to the world; unreasonable people persist in trying to adapt the world to themselves. Therefore all progress depends on unreasonable people.”

–Paraphrased from Bernard Shaw

Man at deskPhoto by Erik Peper

Having the right equipment and work environment will reduce injury and improve performance. This is true for athletes as well as for people using computers, laptops, tablets and smartphones. We look down and curve our upper spine to read the tablet, crane our heads forward to read the screen, lift our shoulders, arms and hands up to the laptop keyboard to enter data, and we bend our heads down and squint to read the smartphone—all occurring without awareness (Straker et al, 2008; Asunda, Odell, Luce, & Dennerlein, 2010; Peper et al, 2014). We are captured by the devices and stay immobilized until we hurt. At the end of the work day, we are often exhausted and experience neck and shoulder stiffness, arm pain and eye fatigue. This stress immobility syndrome is the twenty first century reward for digital immigrants and natives.

We hurt because we fit ourselves to the environment instead of changing the environment to fit us. The predominant slouched position even affects our mood and strength (Peper and Lin, 2012). Experience how your strength decreases when you slouch and look downward as compared when you sit tall with your spine lengthened at your laptop, tablet or phone. You will need a partner to do this practice as shown in Figure 1.

Sit in your slouched position while looking down and extend your arm to the side. Have your partner stand behind you and gently press downward on your upper arm near your wrist while you attempt to resist the pressure. Now relax and let your arms hang along the side of your body. Now sit upright in a tall position with your spine lengthening while looking straight ahead. Again extend your arm and gently have your gently press downward on your upper arm near your wrist while you attempt to resist the pressure.

pressing down on arm slouched erect trimmedFigure 1. Measuring the ability to resist the downward pressure on the forearm while sitting in either slouched or tall position.

You probably experienced significantly more strength resisting the downward pressure when sitting erect and tall than when sitting collapsed as we discovered in our study at San Francisco State University in with students as shown in figure 2.

subject exp rating tall slouch

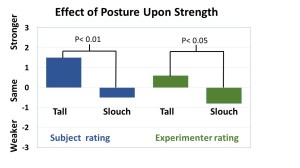

Figure 2. Change in perceived strength resisting a downward pressure on the extended arm while sitting. Reproduced by permission from Schwanbeck, R., Peper, E., Booiman, A., Harvey, R., and Lin, I-M. (in press).

Increase your power and take charge! Arrange your laptop, computer and tablet so it fits you. This usually means changing your home and office chairs and desks; since, they have been manufactured for the average person. Just like the average coach airplane seat – it is uncomfortable for most people. As my colleague Annette Booiman who is a Mensendiek practitioner has pointed out, “An incorrectly adjusted chair or table height will force you to work in a dysfunctional body position while an appropriately adjusted chair or table height offers you the opportunity to work in a healthy position.”

Become the unreasonable person and fit the world so that you are comfortable while using digital devices. There are solutions! Take responsibility and adjust your posture to a healthy one–it will make your life so much more energetic. Sit on your sit bones (ischial tuberosities) as if they are the feet of your pelvis and feel your spine lengthening as you sit tall. Alternatively, stand while working and adjust the desk height for your size. Regardless of whether you sit or stand while working, take many breaks to interrupt your immobilized posture. Install a software program on computer to remind you to take breaks and watch the YouTube  clips on cartoon ergonomics  for working at the computer.

Implement the following common sense ergonomic guidelines:

For working at a computer sit in a chair with your feet on the floor, the elbows bend at 90 degrees with the hands, wrists, and forearms are straight, in-line and roughly parallel to the floor so that the hands can be on the keyboard while the top of monitor is at eye brow level as shown in Figure 3.

Optimum sitting position

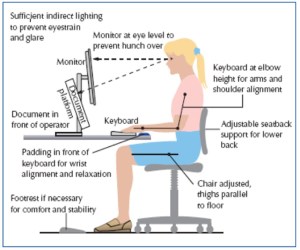

Figure 3. Optimum position to sit at a computer work station. From: http://bmarthur.files.wordpress.com/2009/03/good-posture-how-to-sit-at-a-desk.png

For working with a laptop you will always compromise body position. If the screen is at eye level, you have to bring your arms and hands up to the keyboard, or, more commonly, you will look down at the screen while at the same time raising your hands to reach the keyboard. The solution is to use an external keyboard so that the keyboard can be at your waist position and the laptop screen eye level as shown in Figure 4.

optimum laptop use

Figure 4. Optimum position to sit while using a laptop. From: http://www.winwin-tech.com/uploadfile/cke/images/6.jpg

For working with tablets and smart phones you have little choice. You either look down or reach up to touch the screen. As much as possible tilt and raise the tablet so that you do not have slouch to see the screen.

If you observe that you slouch and collapse while working, invest in an adjustable desk that you can raise or lower for your optimum height. An adjustable height desk such as the unDesk offers the opportunity to change work position from sitting to standing as shown in Figure 5.

unDesk

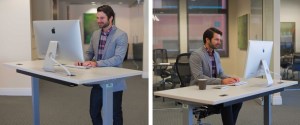

Figure 5. Example of a height adjustable desk (the unDesk) that can be used for sitting and standing.

Although office chairs can give support, we often slouch in them. While at home we use any chair that is available—again encouraging slouching. Reduce the slouching by sitting on a  seat insert such as a BackJoy® which tends to let you sit more erect and in a more powerful and energizing position see Figure 6.

backjoy insert sitting with spine markers a

Figure 6. Example how BackJoy® seat inserts allows you to sit more erect. Reproduced with permission from: http://www.backjoy.com/sit/

Finally, whether or not you can change your environment, take many, many short movement breaks– wiggle, stretch, get up and walk–to interrupt the muscle tension and allow yourself to regenerate. To remind yourself to take breaks while being captured by your work, install a reminder program on your computer such as Stretchbreak that pops up on the screen and guides you through short stretches to regenerate.

Suggested sources:

Cartoon videos on ergonomics: https://peperperspective.com/2014/09/30/cartoon-ergonomics-for-working-at-the-computer-and-laptop/

Healthy computing tips: http://biofeedbackhealth.files.wordpress.com/2013/01/health-computing-email-tips.pdf

Seat insert such as BackJoy®: http://www.backjoy.com/sit/

Height adjustable desk such as The unDesk: http://www.theundesk.com/

Interrupt computer program such as Stretchbreak: http://www.paratec.com

References:

Asundi, K., Odell, D., Luce, A., & Dennerlein, J. T. (2010). Notebook computer use on a desk, lap and lap support: Effects on posture, performance and comfort. Ergonomics, 53(1), 74-82.

Peper, E., & Lin, I. M. (2012). Increase or decrease depression-How body postures influence your energy level. Biofeedback, 40 (3), 126-130.

Peper, E., Booiman, A., Lin, I-M., & Shaffer, F. Making the Unaware Aware-Surface Electromyography to Unmask Tension and Teach Awareness. Biofeedback, 2(1), 16-23.

Schwanbeck, R., Peper, E., Booiman, A., Harvey, R., and Lin, I-M.  Posture changes with a seat insert: Changes in strength and implications for breathing and HRV. Poster submitted for the 46th Annual Meeting of the Association for Applied Psychophysiology and Biofeedback.

Straker, L. M., Coleman, J., Skoss, R., Maslen, B. A., Burgess-Limerick, R., & Pollock, C. M. (2008). A comparison of posture and muscle activity during tablet computer, desktop computer and paper use by young children. Ergonomics, 51(4), 540-555.



* Adapted from: Peper, E. (in press). Become the unreasonable person: Adjust your world to fit you! Western Edition and Schwanbeck, R., Peper, E., Booiman, A., Harvey, R., and Lin, I-M. (in press). Posture changes with a seat insert: Changes in strength and implications for breathing and HRV.


Cartoon ergonomics for working at the computer and laptop

I finally bought a separate keyboard and a small stand for my laptop so that the screen is at eye level and my shoulders are relaxed while typing at the keyboard. To my surprise,  my neck and shoulder tightness and pain disappeared and I am much less exhausted.

How we sit and work at the computer significantly affects our health and productivity. Ergonomics  is the science that offers guidelines on how to adjust your workspace and equipment to suit your individual needs.  It is just like choosing appropriate shoes–Ever try jogging in high heels?  The same process applies to the furniture and equipment you use when computing.

When people arrange their work setting according to  good ergonomic principles and incorporate a healthy computing work style numerous disorders (e.g., fatigue, vision discomfort,  head, neck, back, shoulder, arm or hand pain) may be prevented (Peper et al, 2004). For pragmatic tips to stay health at the computer see Erik Peper’s  Health Computer Email Tips.  Enjoy the following superb video cartoons uploaded by Stephen Walker on YouTube that summarize the basic guidelines for computer, laptop and cell phones use at work, home, or while traveling.

Adult or Child Laptop Use at Home, Work or Classroom

Healthy use of laptops anywhere.

Mobile or Smart Phone Use while Driving, Traveling or on the Move.


Technohealth reminder

Digital devices connect us to each other, provide information from the outside world, allow us to work anywhere as long as there is Wi-Fi, and foster a 24/7 live style. It is almost impossible to remember driving without a smartphone that guides us to where we are going, or using it to find a restaurant or a  place to stay. Being captured by the screen and the useful information, we may not be aware of the possible deleterious effects. Depending how the devices are used, they may contribute to disturbed sleep, increased attention deficit disorder in children, increased pedestrian death rates when the person is captured by the screen and not attending to the environment surrounding them, and increased cancer risks through antenna radiation. Some of the dangers have been integrated in a new poster, Mobile Phones: Ringing up the Danger, reprinted below from the website, http://www.cheapnursedegrees.com/mobile-phones-danger/

At the bottom of this poster are my suggestions to optimize technohealth while working with digital devices.

Slide1Slide3

Poster reprinted with permission from: http://www.cheapnursedegrees.com/mobile-phones-danger/

Suggestions to improve technohealth

Reverse and interrupt Stress Immobilization Syndrome

  • Interrupt your computer work every few minutes to wiggle and move
  • Breathe diaphragmatically
  • Get up and do large movements (stretch or walk) for a few minutes.
  • Take a short walk or do other movements instead of snacking when feeling tense or tired.
  • Smile and realize that work stress it is not worth dying over
  • Install a computer reminder program to signal you to take a short stress break such as StressBreak™.
  • Eat lunch away from your computer workstation.
  • Stand or walk during meetings or when talking on the phone.
  • Turn off LED, TV or computer screens an hour before bedtime to promote restful sleep.

Reduce the possible harm from digital device’s antenna radiation

  • Keep your phone, tablet or laptop in your purse, backpack or attaché case. Do not keep it on or close to your body.
  • Use the speaker phone or plug in earphones with microphone while talking.  Do not hold it against the side of your head, close to your breast or on your lap.
  • Text while the phone or tablet is on a book or on a table away from your body.






Making the Unaware Aware*

“You only have to think to lift the hand and the muscles react.”

“I did not realize that muscle tension occurred without visible movement.”

“I was shocked that I was unaware of my muscle activity—The EMG went up before I felt anything.”

“Just anticipating the thought of the lifting of my hand increased the EMG numbers.”

“After training I could feel the muscle tension and it was one third lower than before I started.”

                                                            -Workshop participants after working with SEMG feedback

Many people are totally unaware that they are tightening their muscles and continuously holding slight tension until they experience stiffness or pain. This covert low-level muscle tension can occur in any muscle and has been labeled dysponesis, namely, misplaced and misdirected efforts (from the Greek: dys = bad; ponos = effort, work, or energy) (Whatmore & Kohli, 1974; Harvey & Peper, 2012). This chronic covert tension is a significant contributor to numerous disorders that range from neck, shoulder, and back pain to headaches and exhaustion and can easily be observed in people working at the computer.

While mousing and during data entry, most people are unaware that they are slightly tightening their shoulder muscles. One can often see this low level chronic tension when a person continuously lifts an index finger in anticipation of clicking the mouse or bends the wrist and lifts the fingers away from the keyboard while mousing with the other hand as shown in Figure 1.

Fig 1 hand lift

Figure 1. Lifting the hand without any awareness while mousing with the other hand (from Peper et al, 2014)

People may hold a position for a long time without being aware that they are contracting their muscles. They are focusing on their task performance. They are “captured by the screen” – until discomfort and pain occur. Only after they experience discomfort or pain, do they change position. Factors that contribute to this apparent lack of somatic awareness include:

  • Being captured by the task. People are so focused upon performing a task that they are unaware of their dysfunctional body position, which eventually will cause discomfort.
  • Institutionalized powerlessness. People accept the external environment as unchangeable. They cannot conceive new options and do not attempt to adjust the environment to fit it to themselves.
  • Lack of somatic awareness and training. People are unaware of their own low levels of somatic and muscle tension.

 Being Captured By the Task

People often want to perform a task well and they focus their attention upon correctly performing the task. They forget to check whether their body position is optimized for the task. Only after the body position becomes uncomfortable and interferes with task performance, do they become aware. At this point, the discomfort has often transformed into pain or illness.

This process of immediately focusing on task performance is easily observed when people are assigned to perform a new task. For example, you can ask people who are sitting in chairs arranged by row to form discussion groups to share information with the individuals in front or behind them. Some will physically lift and rotate their chair to be comfortable, while others will rotate their body without awareness that this twisted position increases physical discomfort. As instructors, we often photograph the participants as they are performing their tasks as shown in Figure 2.

Fig 2a sitting on chairs
Figure 2. Workshop participants rotating their bodies or chairs to perform the group exercise (from Peper et al, 2014).

Although there are many strategies to teach participants awareness of covert tension, our recent published article, Making the Unaware Aware-Surface Electromyography to Unmask Tension and Teach Awareness,describes a simple biofeedback approach to teach awareness and control of residual muscle contraction. Almost all the subjects can rapidly learn to increase their recognition of minimal muscle tension as shown in figure 3.

Fig 5 EMG graphFigure 3. Measurement of forearm extensor muscle awareness of minimum muscle tension before and after feedback training (from Peper et al, 2014).

This study showed that participants were initially unaware of covert tension and that they could quickly learn to increase their sensitivity of muscle tension and reduce this tension within a short time period. Surface electromyograpy (SEMG) provides an objective (third person) perspective of what is actually occurring inside the body and is more accurate than a person’s own perception (first person perspective). The SEMG feedback (numbers and graphs) learning experience was a powerful tool to shift participants’ illness beliefs and encourage them to actively participate in their own self-improvement. It demonstrated that: 1) they were unaware of low tension levels, and 2) they could learn to increase their awareness with SEMG feedback.

The participants became aware that covert tension could contribute to their discomfort and would inhibit regeneration. In some cases, they observed that merely anticipating the task caused an increase in muscle tension. Finally, they realized that if they could be aware during the day of the covert tension, they could identify the situation that triggered the response and also lower the muscle tension.

For detailed methodology and clinical application, see the published article, Peper,E., Booiman, A., Lin, I-M., & Shaffer, F. (2014). Making the Unaware Aware-Surface Electromyography to Unmask Tension and Teach Awareness. Biofeedback, 42(1), 16-23.

References:

Harvey, E. & Peper, E. (2012). I thought I was relaxed: The use of SEMG biofeedback for training awareness and control. In W. A. Edmonds, & G. Tenenbaum (Eds.),Case studiesin applied psychophysiology: Neurofeedback and biofeedback treatments foradvances inhuman performance. West Sussex, UK: Wiley-Blackwell, 144-159.

Whatmore, G. B., & Kohli, D. R. (1974). The Physiopathology and Treatment of Functional Disorders: Including Anxiety States and Depression and the Role of Biofeedback Training. Grune & Stratton.

*Adapted from: Peper,E., Booiman, A., Lin, I-M., & Shaffer, F. (2014).Making the Unaware Aware-Surface Electromyography to Unmask Tension and Teach Awareness. Biofeedback.42(1), 16-23.


Optimizing ergonomics: Adapt the world to you and not the other way around

Having the right equipment doesn’t mean we use it correctly. It turns out that usage patterns matter just as much as fancy new office furniture. This post was inspired by a wonderful article that David Kadavy generously interviewed me for. His article explores split keyboards and working wellness. In this post, I go in-depth on some complimentary workplace tools and techniques.

fig 1 extended neck

After working on a laptop, smartphone or computer, many people experience discomfort and exhaustion.  Back and neck pain and vision problems are very common. Although there are many components that contribute to maintaining health and productivity with digital devices, two factors stand out:

  • Ergonomic arrangement: the way the physical environment forces the person to adapt, such as bending over to read and perform data entry with a tablet.
  • Work style: the way the person manages themselves to perform the tasks.

Fig 2 computer stress

Many problems that are aggravated or caused by inappropriate ergonomics can be compensated by changing workstyle.  For example, if you bend forward to read the tablet or squint to see the text on the monitor, you can take many movement and stress reduction breaks to compensate for the challenging ergonomics.  Having the right equipment, appropriately adjusted, is the focus of ergonomics. Working so that health is maintained regardless of equipment is the focus of work style.

Shoes are a great example. Healthy shoes would look like duck feet–wider at the ball of the feet and toes and narrower at the heel. However, most shoes have pointy or narrow toe boxes. Over time, incorrect footwear becomes a major cause of bunions, foot, hip and back pain for older adults. It causes physical deformity just as the 19th century Chinese practice of foot-binding crippled many women.  If you want to run a 100 meter race or a marathon—running shoes are better than high heels. Adapting the environment to you instead of the other way around is the underlying theme of ergonomics.

But even with correctly fitting shoes many people still experience discomfort. Often this is because of misaligned movement patterns. such as their feet point outward while walking instead of pointing ahead.  Or they unknowingly favor one leg over the other because many years earlier they broke that leg and adapted their walking pattern to reduce the pain. After walking to avoid pain for a month, this new dysfunctional pattern became habitual and their gait never returned to normal. Changing how you walk or work is the focus of optimum work style. For useful suggestions about workstyle see Healthy Computer Email Tips by Erik Peper.

Many experts have worked for decades on defining optimal ergonomics for using digital devices. The results are always compromises because human beings did not evolve to sit in a chair for hours without movement or read from a small screen in front of them. Nevertheless, the ergonomic setup while using laptops and tablets can be significantly improved.  It is impossible to achieve a healthy ergonomic setup while using a laptop or tablet.  If the screen is placed so that is easily readable, then the fingers and hands need to be lifted (which often involves lifting the shoulders) to perform data entry.  On the other hand if the keyboard is at the appropriate height then you have to look down on the screen. If you regularly use a laptop or tablet, consider purchasing a separate monitor and/or keyboard to improve your setup.

And if you’re replacing your keyboard, make sure to check out David Kadavy’s excellent blog: This weird keyboard may be the biggest thing since your standing desk.










Improve health with fun movements: Practices you can do at home and at work

Physical fitness promotes health.    For one person it may be walking, for another jogging, bicycling or dancing. Increase the joy and pleasure of movement. In most cases about 20 minutes of continued activity is enough to keep in shape and regenerate. When the urge to watch TV or just to crash occurs, do some of the movement—you will gain energy. The exercises this article are are developed to reduce discomfort, increase flexibility  and improve health.  Practice them throughout the day, especially before the signals of pain or discomfort occur. First read over the General Concepts Underlying the Exercises  and then explore the various practices.

General Concepts Underlying the Exercises

While practicing the strength and stretch exercises, always remember to breathe. Exercises should be performed slowly, gently and playfully.  If pain or discomfort occurs, STOP. Please consult your health care provider if you have any medical condition which could be affected by exercise.

Perform the practices in a playful, exploratory manner.  Ask yourself:  “What is happening?” and “How do I feel different during and after the practice?” Practice with awareness and passive attention. Remember, Pain, No gain — Pain discourages practice.  Pain and the anticipation of pain usually induce bracing which is the opposite of relaxation and letting go.  In addition, many of our movements are conditioned and without knowing we hold our breath and tighten our shoulders when we perform an exercise.  Explore ways to keep breathing and thereby inhibit the startle/orienting/flight response embedded and conditioned with the  movements.  For example, continue to breathe and relax instead of holding your breath and tightening your shoulders when you initially look at something or perform a task.

Learn to reduce the automatic and unnecessary tightening of muscles not needed for the performance of the task.  As you do an exercise, continuously, check your body and explore how to relax muscles that are not needed for the actual exercise.  Become your own instructor in the same way that a yoga teacher reminds you to exhale when you are doing an asana (yoga pose). If you are unsure whether you are tightening, initially look another person doing the exercise to observe their bracing and breath holding patterns.  Ask them to observe you and give feedback.  In many cases, the more others are involved the easier it is to do a practice.

It is often helpful to perform the practice in a group.  Encourage your whole work unit to take breaks and exercise together.  Usually it is much easier to do something together, especially when you are not motivated—use social support to help you do your practices.

Problems with neck, back and shoulders

The number one overall work-related complaint is the back pain and this is also true for many people who work at the computer. In many cases there are correlations between backache and stress, immobility, and lack of regeneration. Back pain is often blamed on disk problems which may be aggravated by chronic tension that may have some psychological factors.  When you experience discomfort, explore some of the following questions:

  • Is there something for which I am spineless?
  • Who or what is the pain in my neck or back?
  • What is the weight I am carrying?
  • Am I rigid and not willing to be flexible?
  • What negative emotion, such as anger or resentment, needs to resolved?

Be willing to act on whatever answers you observe.  Back and neck pain is often significantly reduced after emotional conflicts are resolved (see the book by John Sarno, MD., Healing Back Pain: The Mind-Body Connection). The best treatment is prevention, emotional resolution, and physical movement. Allow your back to relax and move episodically.  Allow tensions to dissipate and explore the physical, psychological and social burdens you carry.  To loosen your neck practice  the following exercise.

Free your neck and shoulders[1]

This is a slightly complicated, but very effective process. You may want to ask a friend or co-worker to read the following instructions to you.

Pretest: Push away from the keyboard. Sit at the edge of the chair with your knees bent at approximately 90 degrees and your feet flat on the floor about shoulder width apart.  Do the movements slowly.  Do NOT push yourself if you feel discomfort.  Be gentle with yourself.

Look to the right and gently turn your head and body as far as you can go to the right. When you have gone as far as you can comfortably, look at the furthest spot on the wall and remember that spot.  Gently rotate your head and body back to center.  Close your eyes and relax.

Movement practice: Reach up with your right hand; pass it over the top of your head and hold on to your left ear. Then gently bend to the right lowering the elbow towards the floor.  Slowly straighten up. Repeat a few times, feeling as if you are a sapling flexing in the breeze as shown in Figure 1.

Slide2

Figure 1. Illustration of  side ways bending with hand holding ear.

Observe what your body is doing as it bends and comes back up to center. Notice the movements in your ribs, back and neck.  Then drop your arm to your lap and relax.  Make sure you continue to breathe diaphragmatically throughout the exercise.

Reach up with your left hand, pass it over the top of your head and hold on to your right ear.  Repeat as above, this time bending to the right.

Reach up with your right hand and pass it over the top of your head, now holding onto your left ear.  Then look to the right with your eyes and rotate your head to the right as if you are looking behind you. Return to center and repeat the movement a few times.  Then drop your  arm to your lap and relax for a few breaths as shown in Figure 2. Slide3Figure 2. Illustration of  rotational movement with hand holding ear.

Repeat the same rotating motion of your head to the right, except that now your eyes look to the left. Repeat this a few times, then drop your arm to your lap and relax for a few breaths.

Repeat the exercise except reach up with your left hand and pass it over the top of your head, and hold on to your right ear.  Then look to the left with your eyes and rotate your head to the left as if you are looking behind you.  Return to center and repeat a few times.  Then drop your arms to your lap and relax for a few breaths.

Repeat the same rotating motion of your head to the left, except that your eyes look to the right.  Repeat this a few times, then drop your arm to your lap and relax for a few breaths.

Post test: look to the right and gently turn your head and body as far as you can go. When you cannot go any further, look at that point on the wall. Gently rotate your head back to center, close your eyes, relax and notice the relaxing feelings in your neck, shoulders and back.

Did you rotate further than at the beginning of the exercise? More than 95% of participants report rotating significantly further as compared to the pretest.

For additional exercises on how to loosen your neck, shoulders, back, arms, hands, and legs, click on the link for the article, Improve health with movement: There is life after five or look at the somatic relaxation practices in part 3 of our book, Fighting Cancer-A Nontoxic Approach to Treatment.


[1] Adapted from a demonstration by Sharon Keane and developed by Ilana Rubenfeld


Prevent Stress Immobilization Syndrome

stress immobility syndrome

Source unknown

Working at the computer, tablet or smartphone is  often a pain in the neck. Young adults who are digital natives and work with computers and mobile phones experienced frequent pain, numbness or aches in their neck and more than 30% reported aches in their hip and lower back. In addition, women experienced almost twice as much aches in their necks than men  (Korinen and Pääkkönen, 2011).  Similarly findings have been  reported previously when Peper and Gibney observed that most students at San Francisco State University, experienced some symptoms when working at their computer near the end of the semester.  At work, many employees also experience exhaustion, neck, back and shoulder pains when working at the computer. Although many factors contribute to this discomfort such as ergonomics, work and personal stress, a common cause is immobility. To prevent stress immobility syndrome, implement some of the following practice.

  • Every hour take a 5-minute break (studies at the Internal Revenue Service show that employees report significant reduction in symptoms without loss in productivity when they take a 5 minute break each hour).
  • Take a short walk or do other movements instead of snacking when feeling tense or tired.
  • Perform a stretch, strengthening, relaxation, or mobilization movement every 30 minutes.
  • Install a computer reminder program to signal you to take a short stress break such as StressBreak™.
  • Perform  1-2 second wiggle movements (micro-breaks) every 30 to 60 seconds such as dropping your hands to your lap as you exhale.
  • Leave your computer station for the 15-minute mid-morning and mid-afternoon breaks.
  • Eat lunch away from your computer workstation.
  • Stand or walk during  meetings.
  • Drink lots of water (then, you’ll have to walk to the restroom).
  • Change work tasks frequently during the day.
  • Move your printer to another room so that you have to walk to retrieve your documents.
  • Stand up when talking on the phone or when a co-worker stops by to speak with you.

When people implement these new habits, they experience significant decrease in symptoms and improvements in quality of life and health (Peper & Gibney, 2004; Wolever et al, 2011)


Muscle biofeedback makes the invisible visible

“I feel much more relaxed and realize now how unaware I was of the unnecessary tension I’ve been holding”  is a common response after muscle biofeedback training. Many people experience  exhaustion, stiffness, tightness, neck, shoulder and back pain while working long hours at the computer or while exercising.  As we get older, we assume that discomforts are the result of aging. You just have to accept it and live with it–grin and bear it–or you need to be more careful while doing your job or performing your hobby.  The discomfort in many cases is the result of misuse of your body.  Observes what happens when you perform the following experiential practice Threading the needle.

Perform this task so that an observer would think it was real and would not know that you are only simulating threading a needle.

Imagine that you are threading a needle — really imagine it by picturing it in your mind and acting it out. Hold the needle between your left thumb and index finger. Hold the thread between the thumb and index finger of your right hand. Bring the tip of the thread to your mouth and put it between your lips to moisten it and make it into a sharp point. Then attempt to thread the needle, which has a very small eye. The thread is almost as thick as the eye of the needle.

As you are concentrating on threading this imaginary needle, observed what happened? While acting out the imagery, did you raise or tighten your shoulders, stiffen your trunk, clench your teeth, hold your breath or stare at the thread and needle without blinking?

Most people are surprised that they have tightened their shoulders and braced their trunk while threading the needle.  Awareness only occurred after their attention was directed to the covert muscle bracing patterns.

In many cases muscles are tense even though the person senses and feels that they are relaxed.  This lack of awareness can be resolved with muscle biofeedback–it makes invisible visible.  Muscle biofeedback (electromyographic feedback) is used to monitor the muscle activity, teach the person awareness of the previously unperceived muscle tension and  learn relax and control it. For more information of the use of muscle biofeedback to   improve health and performance at work or in the gym, see the published chapter, I thought I was relaxed: The use of SEMG biofeedback for training awareness and control, by Richard Harvey and Erik Peper. It was published in W. A. Edmonds, & G. Tenenbaum (Eds.). (2012), Case studies in applied psychophysiology: Neurofeedback and biofeedback treatments for advances in human performance. West Sussex, UK: Wiley-Blackwell, 144-159.
